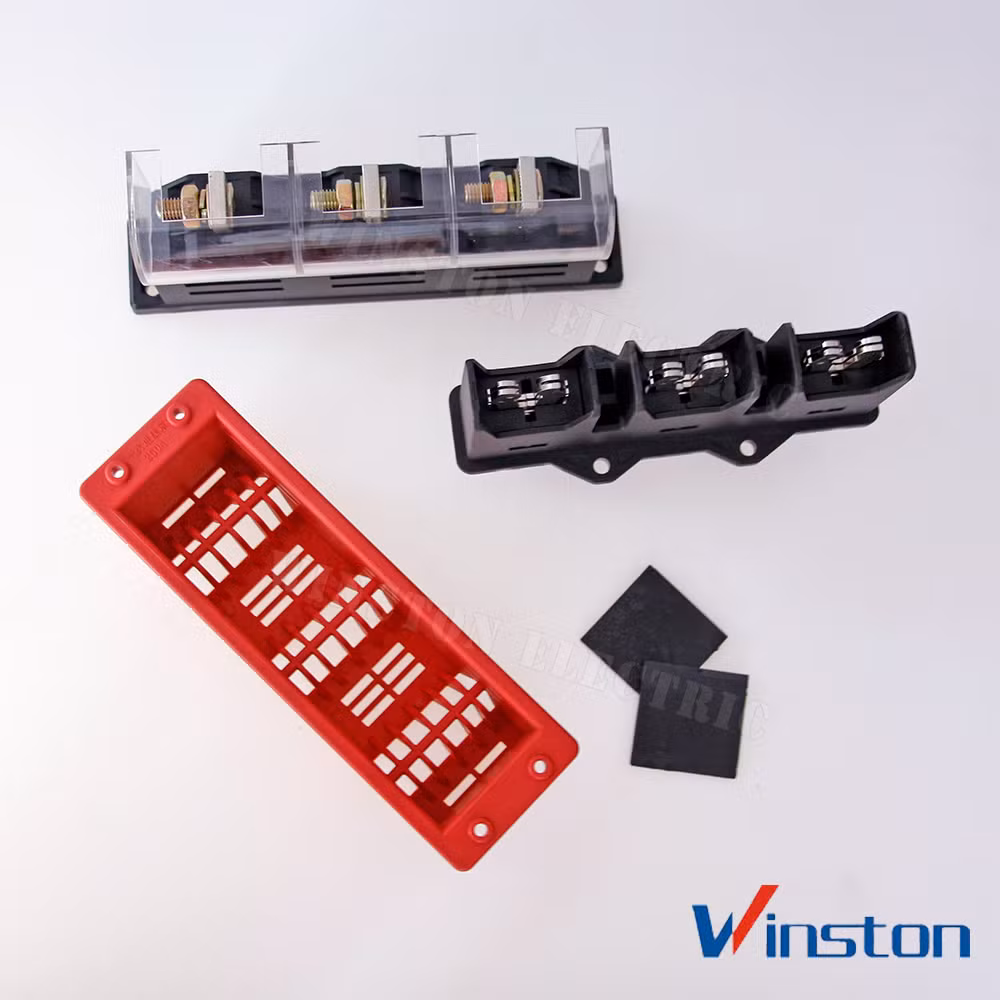

LV Switchgear Drawer Primary plug eletrico / Circuit Connecting Insert
| Rated voltage | AC690V |
| Rated insulation voltage | 1000V |
| Allowable working temperature | 125ºC |
| Vertical busbar thickness | 6mm |
| Rated current | 125A, 250A, 400A, 630A |
| Power Frequency Withstand Voltage | 3500V |
| ertical busbar Space between | 55mm |
| Model | A | B | C | D | E | Poles | Bolt |
| WTZ6-B-3(4)-125A | 25 | 36.2 | 39.2 | 54, 39 | 30, 20 | 3, 4 | M8 |
| WTZ6-B-3(4)-250A | 25 | 36.2 | 39.2 | 54, 39 | 30, 20 | M8 | |
| WTZ6-B-3(4)-400A | 30 | 53 | 56 | 54 | 30 | M10,M12 | |
| WTZ6-B-3(4)-630A | 50 | 72.5 | 75.5 | 74 | 45 | M10, M12 |
